YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

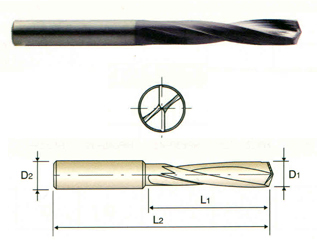

EDP No.	Drill Diameter		Shank Diameter	Flute Length	Overall Length
TiAlN	Fractional (D1)	Decimal (D1)	D2	L1	L2
DH501001	1/8	0.1250	1/8	21/32	2
DH501002	#30	0.1285	3/16	23/32	2
DH501003	#29	0.1360	3/16	13/16	2
DH501004	#28	0.1405	3/16	13/16	2
DH501005	9/64	0.1406	3/16	13/16	2
DH501006	#27	0.1440	3/16	13/16	2
DH501007	#26	0.1470	3/16	13/16	2
DH501008	#25	0.1495	3/16	7/8	2-1/16
DH501009	#24	0.1520	3/16	7/8	2-1/16
DH501010	#23	0.1540	3/16	7/8	2-1/16
DH501011	5/32	0.1562	3/16	7/8	2-1/16
DH501012	#22	0.1570	3/16	7/8	2-1/16
DH501013	#21	0.1590	3/16	7/8	2-1/16
DH501014	#20	0.1610	3/16	1	2-1/2
DH501015	#19	0.1660	3/16	1	2-1/2
DH501016	11/64	0.1719	3/16	1-1/8	2-3/4
DH501017	#15	0.1800	3/16	1-1/8	2-3/4
DH501018	#14	0.1820	3/16	1-1/8	2-3/4
DH501019	3/16	0.1875	3/16	1-1/8	2-3/4
DH501020	#10	0.1935	1/4	1-9/32	2-7/8
DH501021	#9	0.1960	1/4	1-9/32	2-7/8
DH501022	#8	0.1990	1/4	1-9/32	2-7/8
DH501023	#7	0.2010	1/4	1-9/32	2-7/8
DH501024	13/64	0.2031	1/4	1-9/32	2-7/8
DH501025	#6	0.2040	1/4	1-9/32	2-7/8
DH501026	#5	0.2055	1/4	1-9/32	2-7/8
DH501027	#4	0.2090	1/4	1-9/32	2-7/8
DH501028	#3	0.2130	1/4	1-13/32	3
DH501029	7/32	0.2188	1/4	1-13/32	3
DH501030	#2	0.2210	1/4	1-13/32	3
DH501031	#1	0.2280	1/4	1-13/32	3
DH501032	15/64	0.2344	1/4	1-13/32	3
DH501033	B	0.2380	1/4	1-19/32	3-1/8
DH501034	C	0.2420	1/4	1-19/32	3-1/8
DH501035	D	0.2460	1/4	1-19/32	3-1/8
DH501036	1/4	0.2500	1/4	1-19/32	3-1/8
DH501037	F	0.2570	3/8	1-19/32	3-1/8
DH501038	G	0.2610	3/8	1-19/32	3-1/8
DH501039	17/64	0.2656	3/8	1-19/32	3-1/8
DH501040	I	0.2720	3/8	1-25/32	3-3/8
DH501041	J	0.2770	3/8	1-25/32	3-3/8
DH501042	9/32	0.2812	3/8	1-25/32	3-3/8
DH501043	L	0.2900	3/8	1-25/32	3-3/8
DH501044	M	0.2950	3/8	1-25/32	3-3/8
DH501045	19/64	0.2969	3/8	1-25/32	3-3/8
DH501046	N	0.3020	3/8	1-31/32	3-7/8
DH501047	5/16	0.3125	3/8	1-31/32	3-7/8
DH501048	O	0.3160	3/8	1-31/32	3-7/8
DH501049	21/64	0.3281	3/8	1-31/32	3-7/8
DH501050	Q	0.3320	3/8	1-31/32	3-7/8
DH501051	R	0.3390	3/8	2-1/4	4-1/8
DH501052	11/32	0.3438	3/8	2-1/4	4-1/8
DH501053	23/64	0.3594	3/8	2-1/4	4-1/8
DH501054	U	0.3680	3/8	2-1/4	4-1/8
DH501055	3/8	0.3750	3/8	2-1/4	4-1/8
DH501056	V	0.3770	1/2	2-1/2	4-3/8
DH501057	25/64	0.3906	1/2	2-1/2	4-3/8
DH501058	X	0.3970	1/2	2-1/2	4-3/8
DH501059	Y	0.4040	1/2	2-1/2	4-3/8
DH501060	13/32	0.4062	1/2	2-1/2	4-3/8
DH501061	Z	0.4130	1/2	2-1/2	4-3/8
DH501062	27/64	0.4219	1/2	2-13/16	4-5/8
DH501063	7/16	0.4375	1/2	2-13/16	4-5/8
DH501064	29/64	0.4531	1/2	2-13/16	4-5/8
DH501065	15/32	0.4688	1/2	2-13/16	4-5/8
DH501066	31/64	0.4844	1/2	2-13/16	4-5/8
DH501067	1/2	0.5000	1/2	3-1/16	5
DH501068	33/64	0.5156	5/8	3-1/16	5
DH501069	17/32	0.5312	5/8	3-1/16	5
DH501070	35/64	0.5469	5/8	3-1/16	5
DH501071	9/16	0.5625	5/8	3-1/16	5
DH501072	37/64	0.5781	5/8	3-9/32	5-1/4
DH501073	19/32	0.5937	5/8	3-9/32	5-1/4
DH501074	39/64	0.6094	5/8	3-9/32	5-1/4
DH501075	5/8	0.6250	5/8	3-9/32	5-1/4
DH501076	41/64	0.6406	3/4	3-9/32	5-1/4
DH501077	21/32	0.6563	3/4	3-11/16	5-5/8
DH501078	43/64	0.6719	3/4	3-11/16	5-5/8
DH501079	11/16	0.6875	3/4	3-11/16	5-5/8
DH501080	45/64	0.7031	3/4	3-11/16	5-5/8
DH501081	23/32	0.7188	3/4	3-3/4	6
DH501082	47/64	0.7344	3/4	3-3/4	6
DH501083	3/4	0.7500	3/4	3-3/4	6
