YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

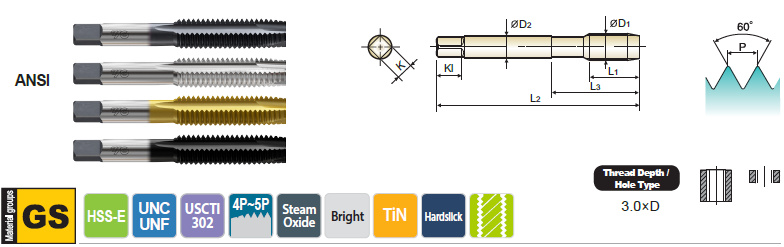

Size	T.P.I	EDP No.				Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute
D1	T.P.I	Steam Oxide	Bright	TiN	Hardslick	Limit	L2	L1	L3	D2	K	KI	No. of Flute
#2	56UNC	I9082	J0082	J1082	J7082	H2	1.752	0.433	0.650	0.141	0.110	0.190	2
#4	40UNC	I9162	J0162	J1162	J7162	H2	1.874	0.563	0.799	0.141	0.110	0.190	2
#5	40UNC	I9202	J0202	J1202	J7202	H2	1.937	0.626	0.882	0.141	0.110	0.190	2
#6	32UNC	I9243	J0243	J1243	J7243	H3	2.000	0.689	0.965	0.141	0.110	0.190	2
#8	32UNC	I9283	J0283	J1283	J7283	H3	2.126	0.752	1.047	0.168	0.131	0.250	2
#10	24UNC	I9323	J0323	J1323	J7323	H3	2.374	0.906	1.220	0.194	0.152	0.250	2
#10	32UNF	I9343	J0343	J1343	J7343	H3	2.374	0.906	1.220	0.194	0.152	0.250	2
1/4	20UNC	I9403	J0403	J1403	J7403	H3	2.500	1.000	1.354	0.255	0.191	0.310	2
1/4	20UNC	I9405	J0405	J1405	J7405	H5	2.500	1.000	1.354	0.255	0.191	0.310	2
1/4	28UNF	I9423	J0423	J1423	J7423	H3	2.500	1.000	1.354	0.255	0.191	0.310	2
5/16	18UNC	I9443	J0443	J1443	J7443	H3	2.720	1.126	1.500	0.318	0.238	0.380	2
5/16	18UNC	I9445	J0445	J1445	J7445	H5	2.720	1.126	1.500	0.318	0.238	0.380	2
5/16	24UNF	I9463	J0463	J1463	J7463	H3	2.720	1.126	1.500	0.318	0.238	0.380	2
3/8	16UNC	I9483	J0483	J1483	J7483	H3	2.937	1.252	1.646	0.381	0.286	0.440	3
3/8	16UNC	I9485	J0485	J1485	J7485	H5	2.937	1.252	1.646	0.381	0.286	0.440	3
3/8	24UNF	I9503	J0503	J1503	J7503	H3	2.937	1.252	1.646	0.381	0.286	0.440	3
7/16	14UNC	I9523	J0523	J1523	J7523	H3	3.157	1.437	-	0.323	0.242	0.410	3
7/16	14UNC	I9525	J0525	J1525	J7525	H5	3.157	1.437	-	0.323	0.242	0.410	3
7/16	20UNF	I9543	J0543	J1543	J7543	H3	3.157	1.437	-	0.323	0.242	0.410	3
7/16	20UNF	I9545	J0545	J1545	J7545	H5	3.157	1.437	-	0.323	0.242	0.410	3
1/2	13UNC	I9563	J0563	J1563	J7563	H3	3.374	1.657	-	0.367	0.275	0.440	3
1/2	13UNC	I9565	J0565	J1565	J7565	H5	3.374	1.657	-	0.367	0.275	0.440	3
1/2	20UNF	I9583	J0583	J1583	J7583	H3	3.374	1.657	-	0.367	0.275	0.440	3
1/2	20UNF	I9585	J0585	J1585	J7585	H5	3.374	1.657	-	0.367	0.275	0.440	3
9/16	12UNC	I9603	J0603	J1603	J7603	H3	3.594	1.657	-	0.429	0.322	0.500	3
9/16	18UNF	I9625	J0625	J1625	J7625	H5	3.594	1.657	-	0.429	0.322	0.500	3
5/8	11UNC	I9643	J0643	J1643	J7643	H3	3.811	1.811	-	0.480	0.360	0.560	3
5/8	11UNC	I9645	J0645	J1645	J7645	H5	3.811	1.811	-	0.480	0.360	0.560	3
5/8	18UNF	I9665	J0665	J1665	J7665	H5	3.811	1.811	-	0.480	0.360	0.560	3
3/4	10UNC	I9703	J0703	J1703	J7703	H3	4.252	2.000	-	0.590	0.442	0.690	3
3/4	10UNC	I9705	J0705	J1705	J7705	H5	4.252	2.000	-	0.590	0.442	0.690	3
3/4	16UNF	I9725	J0725	J1725	J7725	H5	4.252	2.000	-	0.590	0.442	0.690	3
7/8	9UNC	I9744	J0744	J1744	J7744	H4	4.689	2.220	-	0.697	0.523	0.750	3
7/8	14UNF	I9766	J0766	J1766	J7766	H6	4.689	2.220	-	0.697	0.523	0.750	3
1	8UNC	I9784	J0784	J1784	J7784	H4	5.126	2.500	-	0.800	0.600	0.810	3
